Description

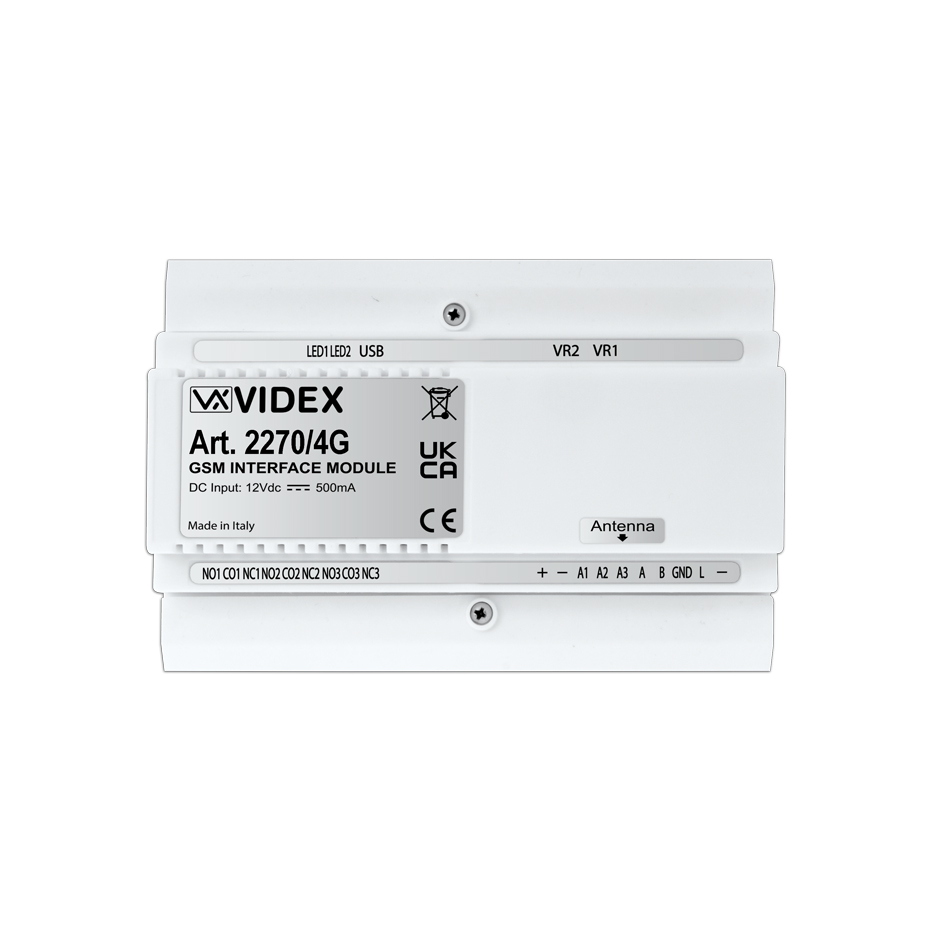

2270/4G GSM Interface Module
The GSM interface module, 2270/4G, is designed to work on the same technology as mobile phones and also interface with the VX2200 digital 2 wire bus system. It enables a call to be made from an entry point (door, gate etc.) to any programmed telephone number (mobile or landline).
It connects directly to the 2 wire bus (L and – databus) and is compatible with the full range of VX2200 functional intercom panels and digital panels and because of this flexibility it can be integrated into small or large VX2200 digital systems that also comprise of Videx audiophones (e.g. 3171 phones etc.) and videophones (e.g. 6276 videophones etc.).
Features
- Program up to 180 users (phone ID’s from 1 to 180)
- 4 telephone numbers per user (1 primary and 3 diverts)
- Programmed numbers can be used in conjunction with Videx’s range of VX2200 audio and videophones
- 3 dry contact relays (CO1, NO1, NC1 / CO2, NO2, NC2 /CO3, NO3, NC3)
- 3 auxiliary inputs (A1, A2 and A3)
- Dial to open facility for up to 3000 dial to open numbers (1000 DTO numbers per relay)
- 1 programmable call button (phone ID) timeband
- Up to 10 programmable access control timebands (for relay 1 DTO numbers only)
- Up to 10 programmable free access timebands
- Up to 10 programmable access levels (for relay 1 DTO numbers only)
- Programming by SMS, GSMSK PC software or the new Videx smartphone SMS wizard App.
- Micro USB connection (for ease of programming using the GSMSK software)
- RS485 bus connection (for ease of programming using the GSMSK software, also for networking with the Art.4903 keypad and/or Art.4850R proximity reader)
- Also compatible with the Art.2813 remote relay
- Up to 8000 stored events which can be downloaded using the GSMSK PC software
