Description

4000 Series Audio Kits

Modular 4000 series “3+1” audio entry kits incorporating two way speech, electronic call tone and lock release facility.

The entry panel is available surface or flush with kits ranging from 1 button up to 12 call buttons. The entry panel consists of a 4836 speaker with either 0, 1 or 2  buttons and the appropriate 4000 series button modules (4843, 4844 and/or 4845) depening on the audiokit required.

The standard finish for the 4000 series fascia is a matt 316 brushed stainless steel with a 4000 series gun metal grey surround front support frame. The kits are also available with a gun metal grey front fascia, suffix /BL to the audiokit part code e.g. 4K-5S/BL (5 button surface audiokit with gun metal grey fascia).

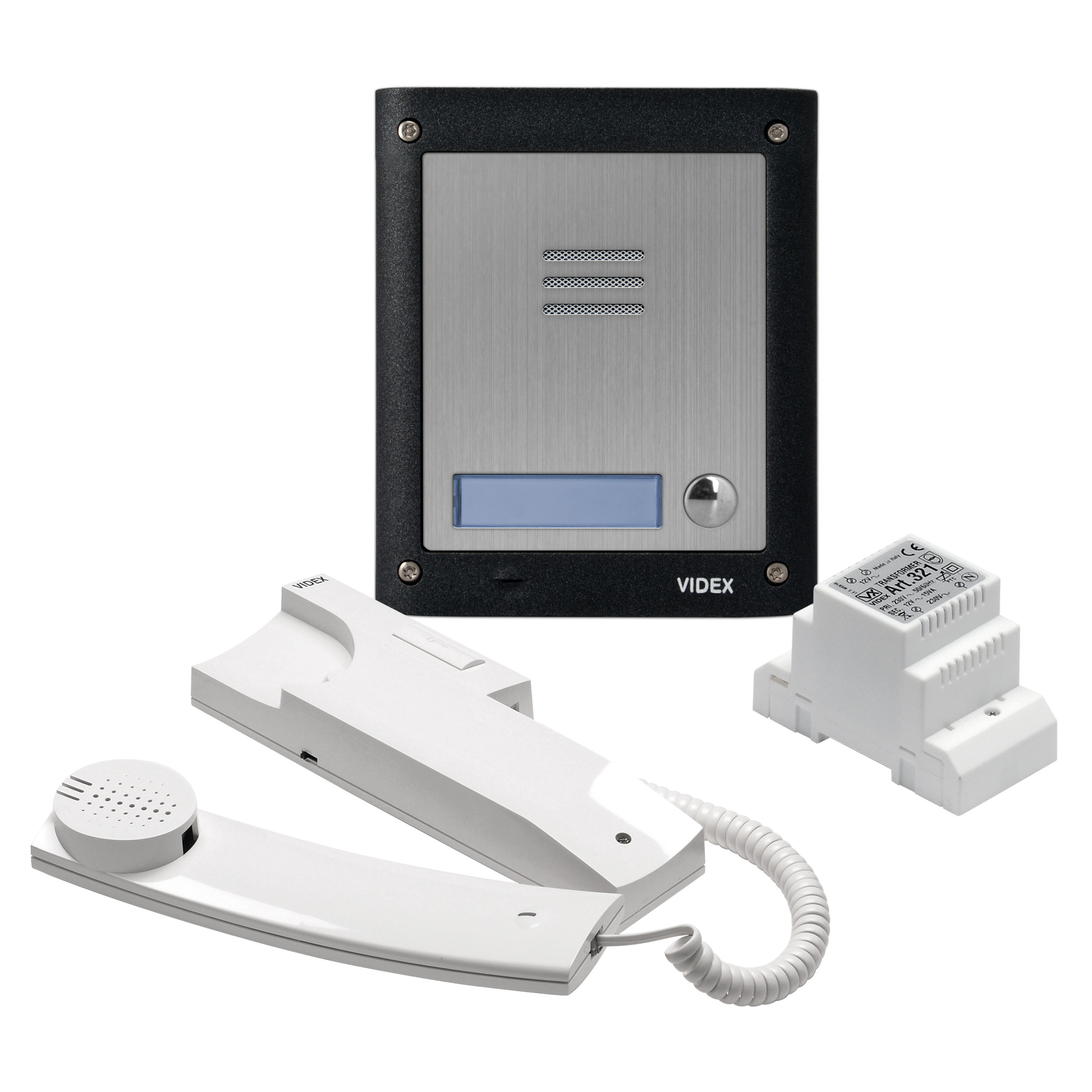

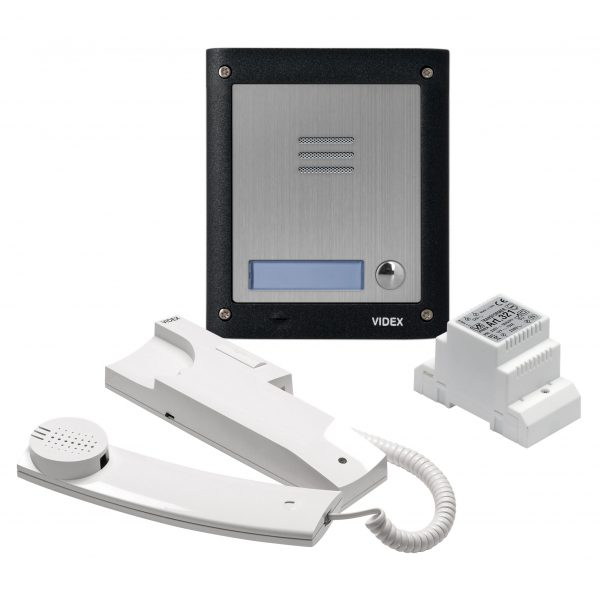

The audiokits are supplied with surface wall mount 3011 smart series audiophones, which incorporate a lock release button and a three position call tone volume control. Up to 2 additional audiophones can be connected in each apartment (3 audiophones per call button max.). The kits are also supplied with 13Vac psu (321 or 322 depending on the audiokit required).

Features

• Audio kit based on the 4000 Series
• 1-12 call buttons available with illuminated name plate
• Surface or flush mount door panels
• Smart line handset with lock button and 3 position call tone volume control
• Connect up to 3 handsets per call button
