Description
Exit switches
See additional information for featured products.
Exit switches
Additional information
| Exit Switch (flush mounting) model 5078 | An alternative style exit switch with the panel manufactured in 2.5mm 316 marine grade stainless steel and designed to fit a standard single-gang back-box. The panel is permanently engraved and includes a model B24S vandal resistant push-button designed for heavy use. Plate Dimensions (mm): H 100 x W 100 Back-box dimensions (mm): H 75 x W 75 x D 5 |
|---|---|
| Exit Switch (miniature surface mounting) model 5080 | This slim-line surface fitting exit switch is manufactured in a robust alloy casting and has universal graphic symbols and is perfect for architrave fitting. The switch is rated at 3A with 12V – 24V. Dimensions (mm): H 83 x W 32 x D 25 |
| Emergency Door Release Button model BG78 | A double pole emergency resettable door release push button with a front cover. It operates with 12V DC and includes a buzzer and LED indication. Dimension (mm): H 85 x W 88 x D 51 |

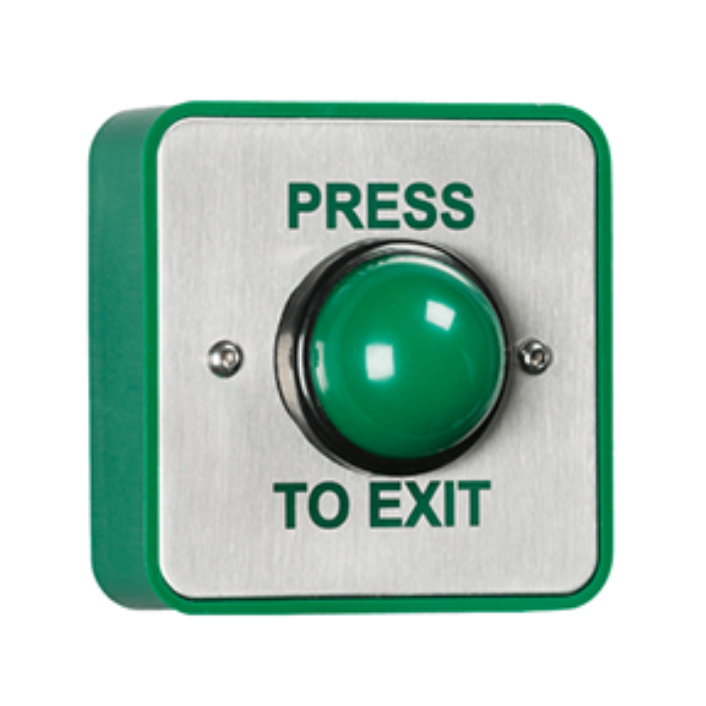

| Exit switch model GBEB | A stainless steel plate with a large green dome push button. Supplied with a green plastic surface box or can be flush fitted on a single gang box. The option of a stainless steel surface housing is available with the addition of a model GBSS. Dimension (mm): H 85 x W 85 x D 28 |
| Exit switch model DDA-EB | A stainless steel DDA exit button with large push-plate. To be ordered with surface stainless steel box – model: DDA-EB-BOX Dimension (mm): H 118mm x W 118mm D 36mm |
| Exit switch model TF-EB | The contactless sensor is embedded in a stainless steel face plate and is illuminated with red and green indication lights. The robust, high impact green plastic casing can be flush or surface mounted. The proximity distance to the sensor can be adjusted between 30mm – 120 mm. The unit is for internal use only. Dimension (mm): H 85mm x W 85mm D 28mm |
