Description

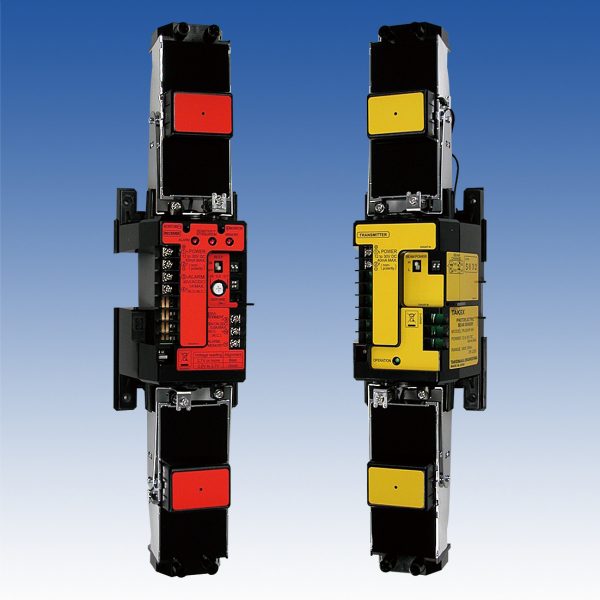

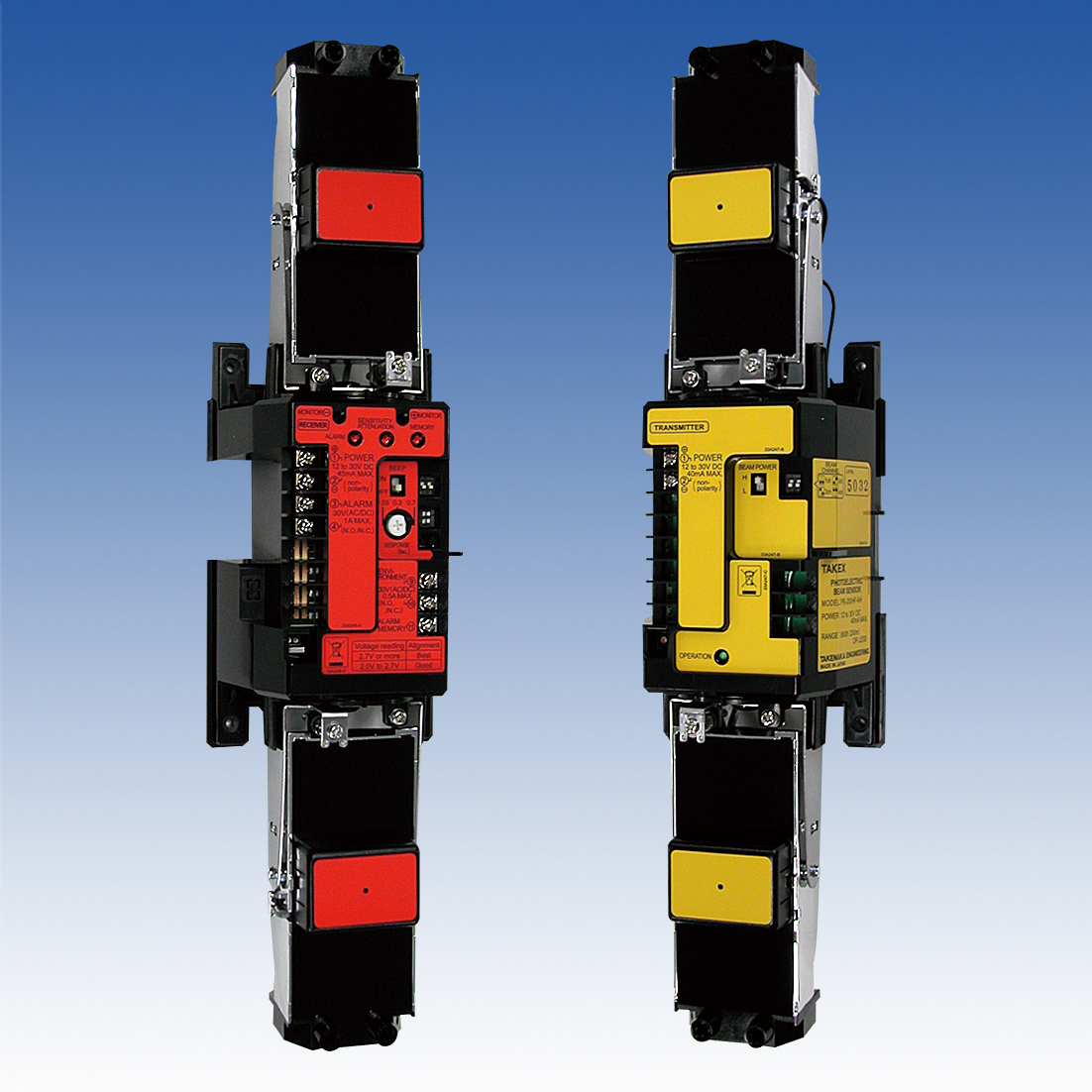

Quad Beam Sensor
Featuring our patented ‘double modulation’ technology for unsurpassed immunity to sunlight and artificial light sources, Twin Beams are ideal for protecting windows, doors, fence lines, entrances, and driveways.
The professional choice in outdoor protection, the Quad Beam detectors synchronise sixteen beam paths for maximum stability in severe weather conditions, perfect for long range perimeter intruder detection.
| Model | Type | Detection Distance | Frequency Selection | Supply Voltage | Current Consumption | ||
|---|---|---|---|---|---|---|---|
| PB-50HFA-KH | Quad Beam | 50m / 165ft | 4 Channels | 12 – 30V DC | 95mA | ||
| PB-100HFA-KH | Quad Beam | 100m / 330ft | 4 Channels | 12 – 30V DC | 105mA | ||
| PB-200HFA-KH | Quad Beam | 200m / 660ft | 4 Channels | 12 – 30V DC | 120mA |
Features:
- 4 x Synchronised high power beams
- Specifically designed for use in TA series Tower Enclosures
- Double coated electronics for demanding environments
- 4 x Selectable beam channels to prevent crosstalk
- Environmental monitoring circuit
- Dynamic auto-gain lock (AGL)
- Vivid internal body stickers aid beam alignment procedure
- Double modulation for unsurpassed light immunity
- Auto-gain control (AGC)
- 50,000 lux sunlight immunity
