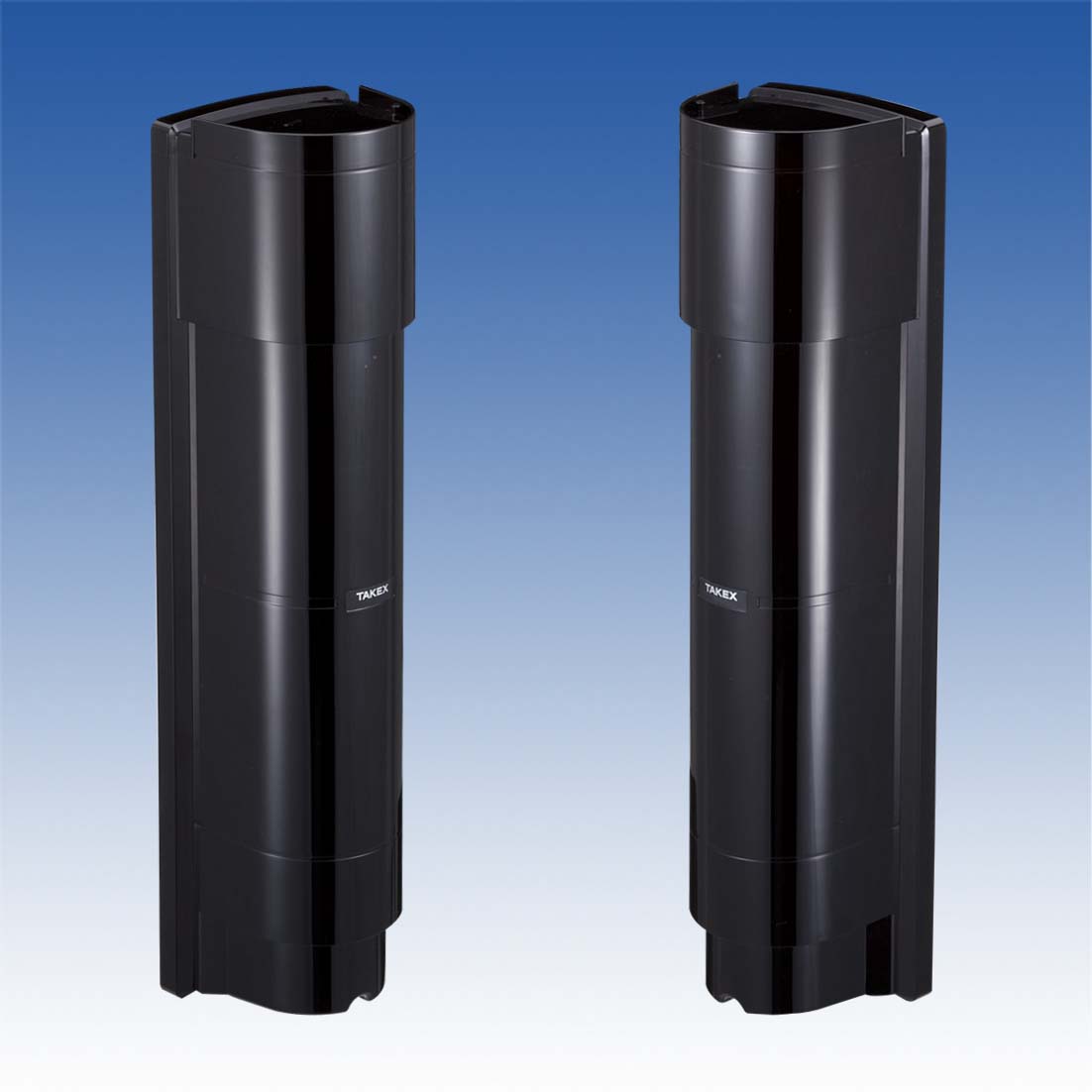

Takex PXB-HF Series

PXB-50HF

PXB-100HF

PXB-200HF

DOWNLOAD DATA SHEET

Description

Quad Beam Sensor

Featuring our patented ‘double modulation’ technology for unsurpassed immunity to sunlight and artificial light sources, Twin Beams are ideal for protecting windows, doors, fence lines, entrances, and driveways.

The professional choice in outdoor protection, the Quad Beam detectors synchronise sixteen beam paths for maximum stability in severe weather conditions, perfect for long range perimeter intruder detection.

Model Type Detection Distance Frequency Selection IP Rating Supply Voltage Current Consumption
PXB-50HF Quad Beam 50m / 165ft 4 Channels 65 12 – 30V DC 30mA
PXB-100HF Quad Beam 100m / 330ft 4 Channels 65 12 – 30V DC 32mA
PXB-200HF Quad Beam 200m / 660ft 4 Channels 65 12 – 30V DC 34mA

Features:

  • 4 x Synchronised high power beams
  • Double modulation for unsurpassed light immunity
  • Increased beam separation minimises nuisance alarms
  • 4 x Selectable beam channels to prevent crosstalk
  • Environmental monitoring circuit
  • Vivid internal colour aids beam alignment procedure
  • Lightning and surge protection up to 15kV
  • Dynamic auto-gain lock (AGL)
  • ±90° horizontal ±20° vertical adjustable sensor heads
  • IP65 housing
