Description

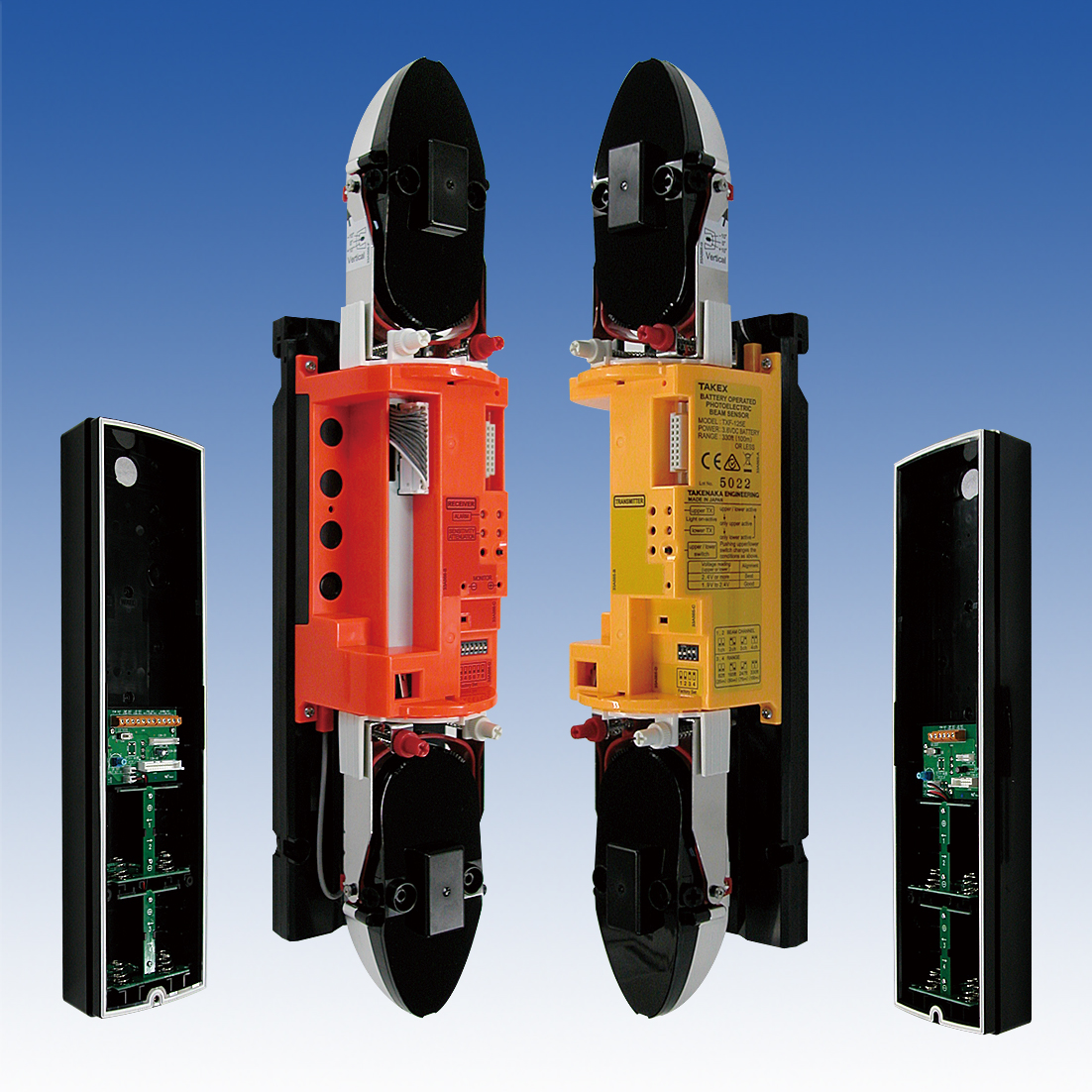

Quad Beam Sensor
Featuring our patented ‘double modulation’ technology for unsurpassed immunity to sunlight and artificial light sources, Twin Beams are ideal for protecting windows, doors, fence lines, entrances, and driveways.
The professional choice in outdoor protection, the Quad Beam detectors synchronise sixteen beam paths for maximum stability in severe weather conditions, perfect for long range perimeter intruder detection.
Model | Type | Detection Distance | Frequency Selection | Supply Voltage | Current Consumption | Battery Life | |
---|---|---|---|---|---|---|---|
TXF-125E-KH | Quad Beam | 100m / 330ft | 4 Channels | 3.6VDC (4x SAFT LS33600) |
750μA | 5 years | |
Features:
- 4 x Synchronised high power beams
- Four selectable operation ranges 25/50/75/100m
- 4 x Selectable beam channels to prevent crosstalk
- Up to 5 year battery life using 2 x LS33600 (3.6V 17Ah) batteries per unit
- Use up to 4 batteries per unit for extended battery life (up to 10 years)
- Vivid internal colour aids beam alignment procedure
- ±90° horizontal ±20° vertical adjustable sensor heads
- Environmental monitoring circuit
- Designed for use in TA series Beam Towers
