Description

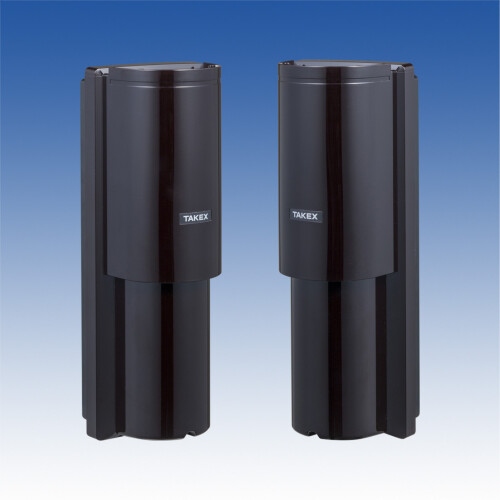

Infrared Beam Sensor (Battery Operated)
Featuring our patented ‘double modulation’ technology for unsurpassed immunity to sunlight and artificial light sources, Twin Beams are ideal for protecting windows, doors, fence lines, entrances, and driveways.
| Model | Type | Detection Distance | Infrared Beam | Supply Voltage | Current Consumption | Battery Life | |
|---|---|---|---|---|---|---|---|
| TXF-20TDM | Twin Beam | 20m / 66ft | Double modulation | 3.6VDC (4x SAFT LS33600) | 1.2mA | 3 years | |
Features:
- 2 Selectable operation ranges: 30/60m (10/200ft)
- 2x Synchronised high power beams
- Double modulation for increased light immunity
- 4 Selectable beam channels to prevent crosstalk
- Alarm output mode selectable (Standard /Real time)
- Advanced sound check
- ±95° Horizontal /±10 vertical adjustment
- IP55 Housing
