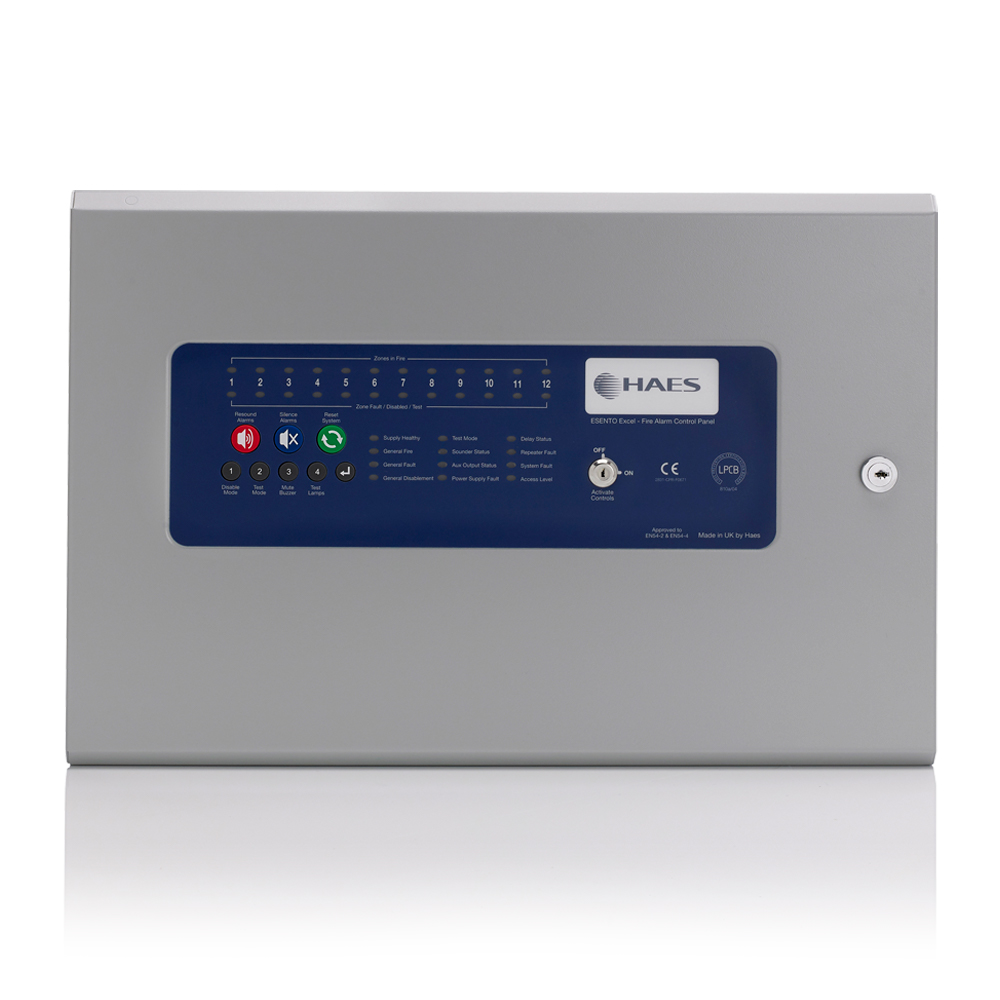

Haes Esento Excel 12 Zone Control Panel Conventional or Twin Wire

12 zone Esento Excel fire alarm control panel, extendable to 12 zones. Excel panels provide the ultimate in flexibility, simplicity & reliability with a generous selection of programmable features, inputs and outputs. Fully networkable up to 8 control panels, 3 false alarm management modes, Twin Wire mode per zone and fully functional repeater panels.

Features:

• 12 zones
• Zonal Twin Wire selection by DIL switch
• Network up to 8 control panels
• Activate controls via key switch or code entry
• Integral detector removal monitoring
• 3 Amp switch mode power supply Nom 27V DC
• 4 monitored sounder outputs
• 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
• Class change I/P
• Alert I/P
• Fire & fault switched -ve outputs
• Program delays to outputs
• False alarm modes A, B & C
• Test mode, with or without sounders
• Disable zones, sounder O/Ps, aux O/Ps & delays
• Alarm load, 2.4A shared between all sounder outputs
• All sounder circuits are fused @ 500mA with resettable fuses
